Fenestration Design
Introduction

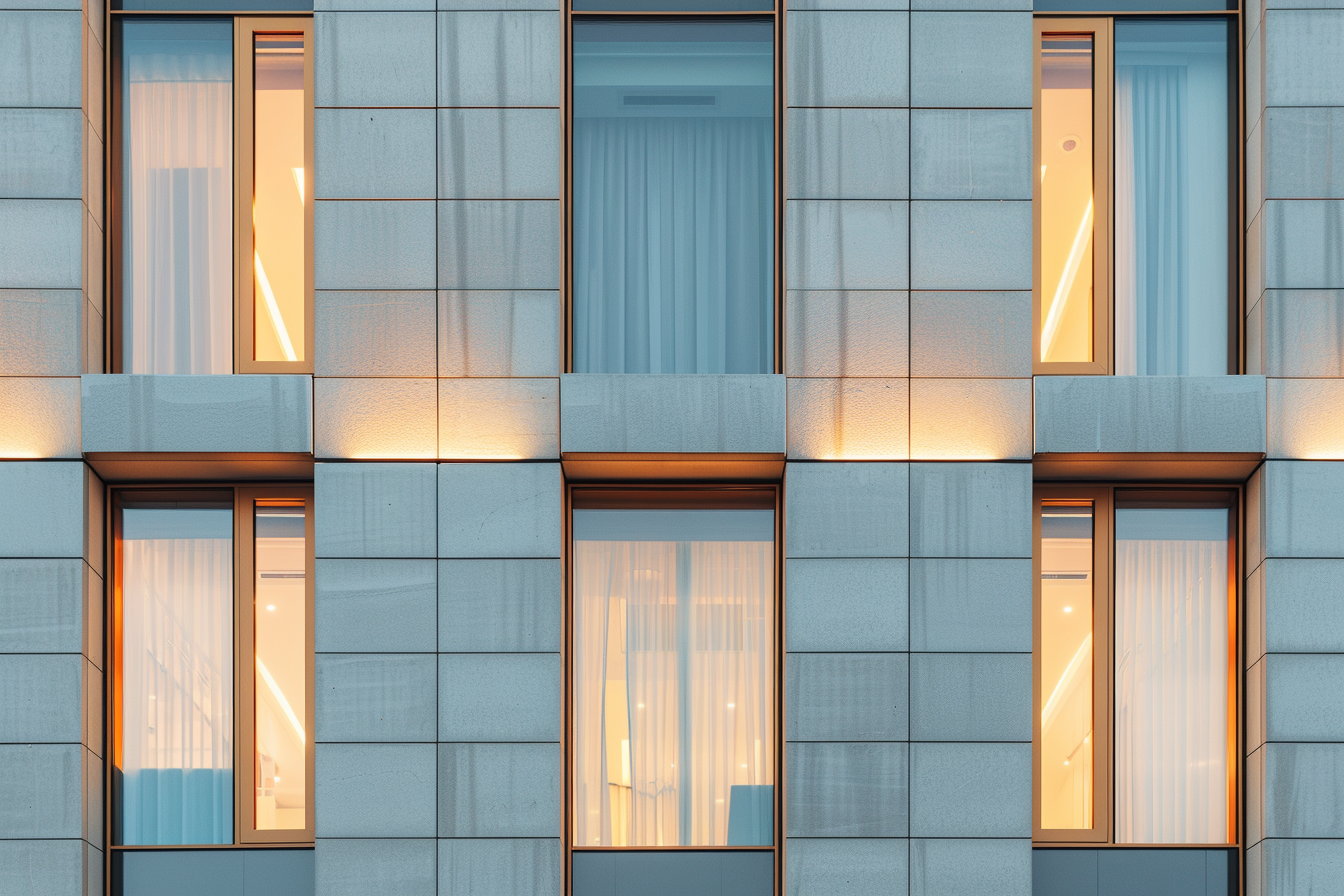

Windows are the eyes of a building. More than just openings for light and air, their placement, size, proportion, and detailing play a critical role in how a façade is experienced both from within and outside the structure. Fenestration influences daylighting, ventilation, energy performance, and the visual character of the building.For recent graduates transitioning from studio projects to professional work, mastering fenestration design is essential. Unlike academic exercises, professional design requires balancing aesthetic intent with technical constraints, client requirements, and local regulations. This article explores the full scope of fenestration design—from theoretical principles to technical execution—equipping new professionals with actionable knowledge to apply in real-world projects.
What You Will Learn:
- Fundamental concepts behind fenestration design
- Key terminology and historical context
- Practical case studies and real-world applications
- Technical specifications and code compliance
- Step-by-step implementation strategies
- Common pitfalls and professional insights
Theoretical Foundation
Core Principles of Fenestration
- Orientation and Sun Path: Window design begins with site analysis. South-facing windows (in the northern hemisphere) maximize winter sun, while north-facing windows offer even daylight. East and west orientations often require shading due to low-angle sun.
- Proportion and Scale: The proportion of windows influences perception. Tall vertical windows evoke grandeur, while horizontal bands can emphasize horizontality or landscape connections.
- Rhythm and Repetition: Consistent window spacing and sizing establish rhythm on the façade, reinforcing architectural order.
- Solid-to-Void Ratio: Balancing openness with enclosure affects energy performance, privacy, and architectural expression.
Historical Evolution
From Roman arches and Gothic tracery to the ribbon windows of Modernism and today’s dynamic facades, fenestration has continuously evolved with materials, technology, and cultural ideals.
- Gothic cathedrals used stained glass to tell stories.
- The Bauhaus movement emphasized function-driven ribbon windows.
- Contemporary architecture embraces high-performance glazing and kinetic shading systems.
Key Terminology
- Mullion: A vertical element dividing window units.
- Transom: A horizontal element separating glazing sections.
- U-value: Measure of heat transfer through a window assembly.
- SHGC (Solar Heat Gain Coefficient): Indicates how much solar radiation passes through.
- Vision Glass: Transparent glazing for views.
- Spandrel Panel: Opaque section covering structural or mechanical elements.
Pro Tip: Avoid placing large areas of glazing on west façades in hot climates—use vertical fins or responsive louvers instead.
Practical Application
- Case Study 1: Louis Kahn’s Salk Institute, La Jolla, California
- Window Strategy: Tall, narrow openings positioned for precise daylighting.
- Detailing: Deep window reveals that mitigate glare.
- Effectiveness: Provides serene, controlled lighting for contemplative workspaces.
- Case Study 2: Swiss Re Tower ("The Gherkin"), London by Foster + Partners
- Window Strategy: Spiral fenestration pattern aligned with internal floor plates.
- Detailing: Triple-glazed facade with natural ventilation slots.
- Effectiveness: Reduces energy consumption while maximizing views.
- Case Study 3: Tadao Ando’s Church of the Light, Osaka
- Window Strategy: Cross-shaped cut in concrete wall as sole window.
- Detailing: Minimalist detailing emphasizes spiritual symbolism.
- Effectiveness: Balances drama and minimal daylight.
Common Design Challenges
- Integrating shading without visual clutter
- Maintaining visual coherence with varied window sizes
- Ensuring window operability while preserving design intent
**Pro Tip**: Always mock up at least one full-scale window bay on site. It helps verify performance and aesthetic impact.
Technical Considerations
Performance Metrics
- U-Value: Lower is better (typical range: 0.15–0.35 W/m²·K)
- SHGC: Lower for hot climates, higher for cold
- Visual Light Transmittance (VLT): High values maximize daylight
Codes and Standards
- IECC (International Energy Conservation Code)
- ASHRAE 90.1: Provides energy efficiency benchmarks
- Local codes: Vary by region; always check municipal requirements
Systems Integration
- Curtain Wall Systems: Allow for large uninterrupted glazing
- Window Wall Systems: Floor-by-floor installation flexibility
- Operable Windows: Require coordination with HVAC, fire codes, and waterproofing
Detailing Priorities
- Thermal breaks in frames to reduce bridging
- Sill and head flashing for waterproofing
- Integration with interior finishes and wall insulation
Pro Tip: Always slope sills outward and allow for drip edges—this detail prevents costly water infiltration issues.
Implementation Guide
Step-by-Step Process
- Site Analysis: Evaluate orientation, views, climate.
- Grid Establishment: Coordinate with structural bays.
- Determine Window Hierarchy: Primary views vs. service spaces.
- Select Glass Type: Based on performance needs (e.g., low-E, laminated).
- Develop Shading Strategy: Passive or kinetic elements.
- Coordinate Detailing: Align with wall assemblies and interior finishes.
- Review Codes: Ensure accessibility and egress compliance.
- Mock-Ups and Simulations: Verify aesthetics, performance, constructability.
Best Practices
- Align fenestration with interior functions
- Use consistent datums to maintain visual order
- Incorporate operability for natural ventilation when possible
Common Mistakes and Solutions
Mistake: Inconsistent window alignment across floors
Solution: Establish and maintain vertical grid lines early in design.
Mistake: Excessive glazing without solar control
Solution: Integrate passive shading and high-performance glass.
Mistake: Ignoring maintenance access
Solution: Ensure operable units or accessible cleaning paths.
Mistake: Window dimensions that clash with standard materials
Solution: Coordinate dimensions with manufacturer module sizes to reduce costs.
Pro Tip: For tall buildings, minimize operable windows above the reach of maintenance teams unless equipped with automated systems.
Resources and Tools
Recommended Software
- Revit: BIM modeling with detailed scheduling and placement
- Rhino + Grasshopper: Parametric window pattern generation
- Ladybug Tools: Environmental analysis for daylight and heat gain
Key References
- “Detail in Contemporary Window Design” by Virginia McLeod
- “The Architecture of Natural Light” by Henry Plummer
- Local building and energy codes
Continued Learning
- Enroll in building envelope courses (e.g., AIA, RIBA CPD)
- Attend conferences like Facades+ or Zak World of Facades
- Study LEED and WELL guidelines for performance benchmarks
Conclusion
Fenestration is a powerful design tool. It affects how buildings breathe, how they capture light, and how they present themselves to the world. For recent graduates stepping into practice, understanding window placement, proportion, and detail is critical—not just for aesthetics, but for performance and constructability.A well-designed window strategy reflects a balance between vision and practicality. By mastering both the theory and technical execution of fenestration, emerging architects can create buildings that are not only beautiful but also intelligent, responsive, and enduring. Start with the fundamentals, study the context, and always build mockups—because windows aren't just seen; they're experienced.
